faceset_fields_ Struct Reference

#include <vrmltypes.h>

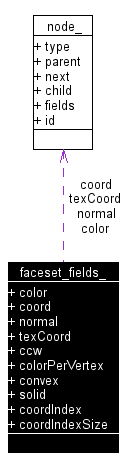

Collaboration diagram for faceset_fields_:

[legend]

---

Detailed Description

Internal rapresentation of the fields of vrml IndexedFaceSet node.

The IndexedFaceSet node is formally defined as:

IndexedFaceSet {
  eventIn       MFInt32 set_colorIndex
  eventIn       MFInt32 set_coordIndex
  eventIn       MFInt32 set_normalIndex
  eventIn       MFInt32 set_texCoordIndex
  exposedField  SFNode  color             NULL
  exposedField  SFNode  coord             NULL
  exposedField  SFNode  normal            NULL
  exposedField  SFNode  texCoord          NULL
  field         SFBool  ccw               TRUE
  field         MFInt32 colorIndex        []        # [-1,)
  field         SFBool  colorPerVertex    TRUE
  field         SFBool  convex            TRUE
  field         MFInt32 coordIndex        []        # [-1,)
  field         SFFloat creaseAngle       0         # [0,)
  field         MFInt32 normalIndex       []        # [-1,)
  field         SFBool  normalPerVertex   TRUE
  field         SFBool  solid             TRUE
  field         MFInt32 texCoordIndex     []        # [-1,)
}

See also:

International Standard ISO/IEC 14772-1:1997 : Information technology -- Computer graphics and image processing -- The Virtual Reality Modeling Language (VRML) -- Part 1: Functional specification and UTF-8 encoding. Chapter 6.23 IndexedFaceSet

Data Fields
node *	color
	A pointer to the color node.
node *	coord
	A pointer to the coordinate node.
node *	normal
	A pointer to the normal node.
node *	texCoord
	A pointer to the TextureCoordinate node.
bool	ccw
	Counter Clock Wise order.
bool	colorPerVertex
	Tell if the colors are specified for each vertex.
bool	convex
	Tell if the shape is convex.
bool	solid
	Tell if the shape is solid.
int *	coordIndex
	The index of the points for the faces.
int	coordIndexSize
	The size of the index array.

---

Field Documentation

bool faceset_fields_::ccw

Counter Clock Wise order.

node* faceset_fields_::color

A pointer to the color node.

bool faceset_fields_::colorPerVertex

Tell if the colors are specified for each vertex.

bool faceset_fields_::convex

Tell if the shape is convex.

node* faceset_fields_::coord

A pointer to the coordinate node.

int* faceset_fields_::coordIndex

The index of the points for the faces.

int faceset_fields_::coordIndexSize

The size of the index array.

node* faceset_fields_::normal

A pointer to the normal node.

bool faceset_fields_::solid

Tell if the shape is solid.

node* faceset_fields_::texCoord

A pointer to the TextureCoordinate node.

---

The documentation for this struct was generated from the following file:

• vrmltypes.h

---
